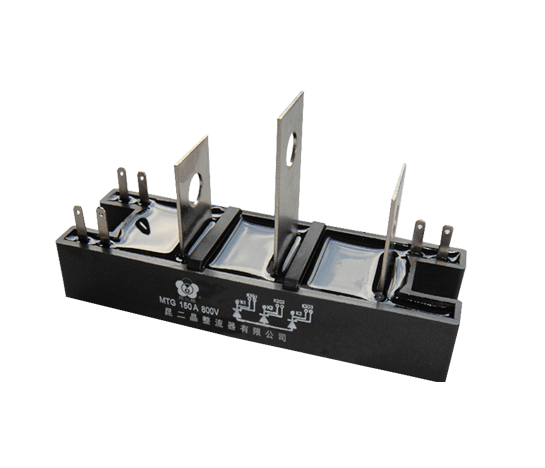

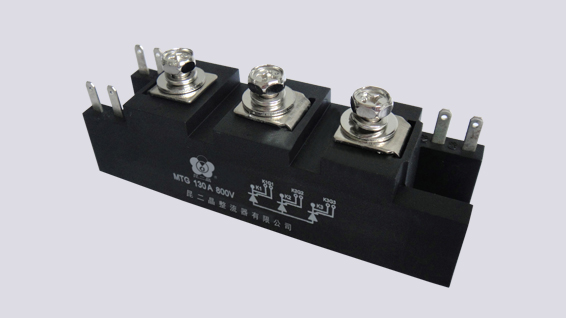

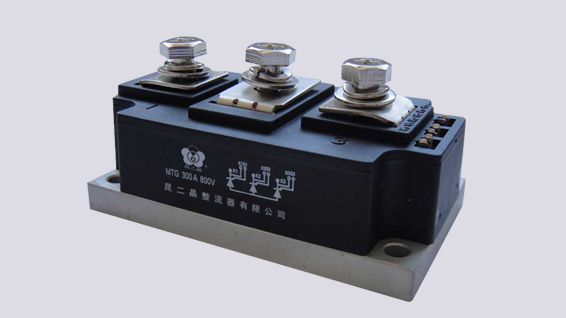

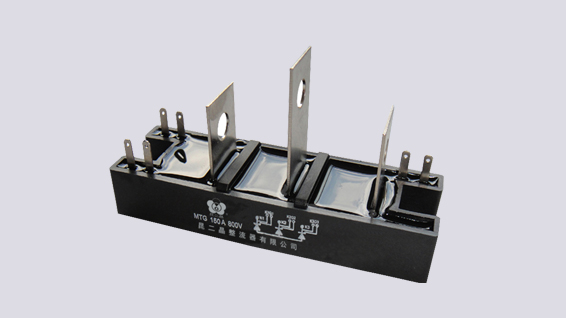

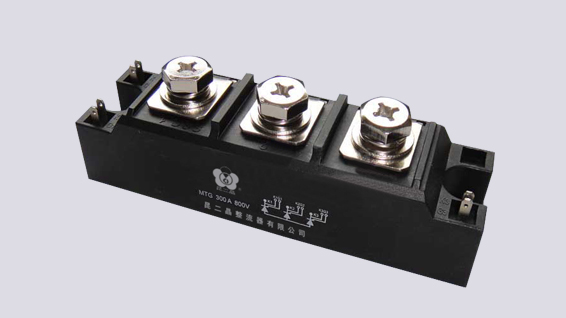

型號MTG/MFG/MDG
產品參數25-300A/400-1200V
封裝形式焊接式/壓接式
電焊機電源、各種DC電源。
特點● 體積小、重量輕、結構緊湊、可靠性高
● 外接線簡單、互換性好、便于維修和安裝
● 結構重復性好,裝置的機械設計可以簡化
● 反應極快,在微秒級內開通、關斷
● 無觸點運行,無火花、無噪音;效率高,成本低
Type | IT(AV)IF(AV) | VDRM VRRM | VTM VFM | @ITM @IFM | IDRM IRRM | IGT | VGT | IH | dv/dt | di/dt | ITSM | Rjc | Tjm | Outline |
A | V | V | A | mA | mA | V | mAS | V/μS | A/μS | A×103 | ℃/W | ℃ | ||
MTG100A50-250 | 100 | 500-2500 | 1.67 | 300 | 12 | 100 | 2.5 | 100 | 800 | 100 | 3.2 | 0.25 | 125 | C-26,27,28 |
MTG150A50-250 |
150 | 500-2500 | 1.67 | 450 | 12 | 100 | 2.5 | 100 | 800 | 100 | 5.1 | 0.16 | 125 | C-29,30 |
MTG200A50-250 |
200 | 500-2500 | 1.62 | 600 | 20 | 150 | 2.5 | 100 | 800 | 100 | 6.5 | 0.13 | 125 | C-30,31,62 |
MTG200A50-250三社 | 250 | 500-2500 | 1.65 | 750 | 20 | 150 | 2.5 | 100 | 800 | 100 | 8.5 | 0.1 | 125 | C-30,31,62 |
Type | IF(AV) | VRRM | VFM @ITM | IRRM | IF(RMS) | IFSM | Rjc | Tjm | Outline | |||||
A | V | V | A | mA | A | A×103 | ℃/W | ℃ | ||||||
MDx100A | 100 | 500-2500 | 1.57 | 300 | 12 | 157 | 3.9 | 0.38 | 150 | C-26,27,28 | ||||
MDx150A | 150 | 500-2500 | 1.57 | 450 | 12 | 236 | 5.8 | 0.24 | 150 | C-29,30 | ||||
MDx200A | 200 | 500-2500 | 1.5 | 600 | 20 | 314 | 8 | 0.2 | 150 | C-30,31,62 | ||||
MDx250A | 250 | 500-2500 | 1.53 | 750 | 20 | 393 | 9.8 | 0.15 | 150 | C-30,31,62 | ||||
MDx300A | 300 | 500-2500 | 1.5 | 900 | 25 | 471 | 11.5 | 0.13 | 150 | C-30,31,62 |
Type | IT(AV) | VDRM VRRM | VTM @ITM | IDRM IRRM | IGT | VGT | IH | dv/dt | di/dt | ITSM | Rjc | Tjm | Outline | |
A | V | V | A | mA | mA | V | mAS | V/μS | A/μS | A×103 | ℃/W | ℃ | ||
MTx100A | 100 | 500-2500 | 1.67 | 300 | 12 | 100 | 2.5 | ≤100 | 800 | 100 | 3.2 | 0.25 | 125 | C-26,27,28 |
MTx150A | 150 | 500-2500 | 1.67 | 450 | 12 | 100 | 2.5 | ≤200 | 800 | 100 | 5.1 | 0.16 | 125 | C-29,30 |
MTx200A | 200 | 500-2500 | 1.62 | 600 | 20 | 150 | 2.5 | ≤200 | 800 | 100 | 6.5 | 0.13 | 125 | C-30,31,62 |
MTx250A | 250 | 500-2500 | 1.65 | 750 | 20 | 150 | 2.5 | ≤200 | 800 | 100 | 8.5 | 0.1 | 125 | C-30,31,62 |
MTx300A | 300 | 500-2500 | 1.58 | 900 | 25 | 150 | 2.5 | ≤200 | 800 | 100 | 9.6 | 0.08 | 125 | C-30,31,62 |
